導線截面:0.5-1.5mm m2(美式線規22-16)
最大電流·Imax=19A銅0.7mm
編號 |
尺寸 |
|||
W |
L |
F
|
C |
|
mm |
mm |
mm |
mm |
|
DBV 1.25-10 |
2.3 |
20.0 |
10.0 |
4.3 |
DBV 1.25-11 |
3.0 |
21.0 |
11.0 |
|
DBV 1.25-14 |
3.0 |
24.0 |
14.0 |
|
DBV 1.25-18 |
2.3 |
28.0 |
18.0 |

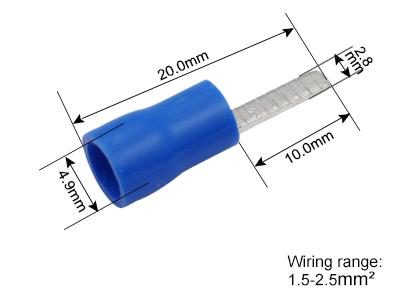

導線截面:1.5-2.5mm m2(美式線規16-14)
最大電流·Imax=19A銅0.8mm
編號 |
尺寸 |
|||
W |
L |
F
|
C |
|
mm |
mm |
mm |
mm |
|
DBV 2-9 |
2.8 |
19.0 |
9.0 |
4.9 |
DBVS 2-14 |
2.4 |
24.0 |
14.0 |
|
DBVL 2-14 |
3.0 |
24.0 |
14.0 |
|
DBV 2-18 |
2.3 |
28.0 |
18.0 |
導線截面:2.5-4mm 2(美式線規14-12)
最大電流·Imax=37A銅1.0毫米
編號 |
尺寸 |
|||
W |
L |
F
|
C |
|
mm |
mm |
mm |
mm |
|
DBV 5.5-10 |
2.8 |
22.5 |
10.0 |
5.6 |
DBV 5.5-14 |
4.5 |
26.5 |
14.0 |
|
DBV 5.5-18 |
4.5 |
30.5 |
18.0 |
|
DBV 8-14 |
6.0 |
30.5 |
14.0 |
