導線截面：0.5-1.5mm m2（美式線規22-16）
最大電流·Imax=19A銅0.7mm
|
編號 |
尺寸 |
顏色 |
||||||
|
美國系統螺栓編號 |
螺栓孔直徑 |
B |
L |
F |
H |
Dφ |
||
|
D2φ |
mm |
mm |
mm |
mm |
mm |
|||
|
RV1.25-3 |
#4 |
3.2mm |
5.7 |
17.8 |
4.95 |
10.0 |
4.3 |
紅色 |
|
RVS1.25-3.5 |
#6 |
3.7mm |
5.7 |
17.8 |
4.95 |
|||
|
RVM1.25-3.5 |
#6 |
3.7mm |
6.6 |
20.1 |
6.3 |
|||
|
RVL1.25-3.5 |
#6 |
3.7mm |
7.2 |
21.2 |
7.0 |
|||
|
RVS1.25-4 |
#8 |
4.3mm |
6.6 |
20.1 |
6.3 |
|||
|
RVL1.25-4 |
#8 |
4.3mm |
8.0 |
21.5 |
7.0 |
|||
|
RVS1.25-5 |
#10 |
5.3mm |
8.0 |
21.5 |
7.0 |
|||
|
RVL1.25-5 |
#10 |
5.3mm |
9.5 |
23.3 |
8.0 |
|||
|
RVLL1.25-5 |
#10 |
5.3mm |
11.6 |
27.5 |
11.1 |
|||
|
RVS1.25-6 |
1/4 |
6.5mm |
9.5 |
23 |
8.0 |
|||
|
RV 1.25-6 |
1/4 |
6.5mm |
11.6 |
27.5 |
11.1 |
|||
|
RV 1.25-8 |
5/16 |
8.4mm |
11.6 |
27.5 |
11.1 |
|||
|
RV 1.25-10 |
3/8 |
10.5mm |
13.6 |
31.6 |
13.9 |
|||
|
RVL 1.25-10 |
3/8 |
10.5mm |
19.2 |
35.0 |
16.0 |
|||
|
RV 1.25-12 |
1/2 |
13.0mm |
19.2 |
35.0 |
16.0 |
|||
導線截面：1.5-2.5mm m2（美式線規16-14）
最大電流Imax=27A銅0.8mm
|
編號 |
尺寸 |
顏色 |
||||||
|
美國系統螺栓編號 |
螺栓孔直徑 |
B |
L |
F |
H |
Dφ |
||
|
D2φ |
mm |
mm |
mm |
mm |
mm |
|||
|
RV 2-3 |
#4 |
3.2mm |
6.6 |
17.8 |
4.3 |
10.0 |
4.9 |
黑色 |
|
RVS 2-3.5 |
#6 |
3.7mm |
6.6 |
17.8 |
4.3 |
|||
|
RVM 2-3.5 |
#6 |
3.7mm |
6.6 |
21.0 |
7.0 |
|||
|
RVL 2-3.5 |
#6 |
3.7mm |
8.5 |
22.5 |
7.75 |
|||
|
RVS 2-4 |
#8 |
4.3mm |
6.6 |
21.0 |
7.0 |
|||
|
RVL 2-4 |
#8 |
4.3mm |
8.5 |
22.5 |
7.75 |
|||
|
RVS 2-5 |
#10 |
5.3mm |
8.5 |
22.5 |
7.75 |
|||
|
RVL 2-5 |
#10 |
5.3mm |
9.5 |
22.5 |
7.25 |
|||
|
RVS 2-6 |
1/4 |
6.5mm |
9.5 |
25.0 |
10.0 |
|||
|
RV 2-6 |
1/4 |
6.5mm |
12.0 |
27.6 |
11.0 |
|||
|
RV 2-8 |
5/16 |
8.4mm |
12.0 |
27.6 |
11.0 |
|||
|
RV 2-10 |
3/8 |
10.5mm |
13.6 |
30.2 |
13.9 |
|||
|
RVL 2-10 |
3/8 |
10.5mm |
19.2 |
35.0 |
16.0 |
|||
|
RV 2-12 |
1/2 |
13.0mm |
19.2 |
35.0 |
16.0 |
|||
導線截面：2.5-4mm 2（美式線規14-12）
最大電流·Imax=37A銅1.0毫米
|
編號 |
尺寸 |
顏色 |
||||||
|
美國系統螺栓編號 |
螺栓孔直徑 |
B |
L |
F |
H |
Dφ |
||
|
D2φ |
mm |
mm |
mm |
mm |
mm |
|||
|
RV 3.5-4 |
#8 |
4.3mm |
8.0 |
24.5 |
7.7 |
12.5 |
6.2 |
黑色 |
|
RVS 3.5-5 |
#10 |
5.3mm |
8.0 |
24.5 |
7.7 |
|||
|
RVM 3.5-5 |
#10 |
5.3mm |
9.5 |
25.5 |
8.3 |
|||
|
RVL 3.5-5 |
#10 |
5.3mm |
12.0 |
27.9 |
7.7 |
|||
|
RV 3.5-6 |
1/4 |
6.5mm |
12.0 |
27.9 |
7.7 |
|||
|
RV 3.5-8 |
5/16 |
8.4mm |
15.0 |
32.0 |
13.5 |
|||
|
RV 3.5-10 |
3/8 |
10.5mm |
15.0 |
32.0 |
13.5 |
|||
導線截面：4-6mm 2（美式線規12-10）
最大電流·Imax=48A銅1.0毫米
|
編號 |
尺寸 |
顏色 |
||||||
|
美國系統螺栓編號 |
螺栓孔直徑 |
B |
L |
F |
H |
Dφ |
||
|
D2φ |
mm |
mm |
mm |
mm |
mm |
|||
|
RV 5.5-3.5 |
#6 |
3.7mm |
7.2 |
21.4 |
5.9 |
12.5 |
6.7 |
黃色 |
|
RVS 5.5-4 |
#8 |
4.3mm |
7.2 |
21.4 |
5.9 |
|||
|
RVL 5.5-4 |
#8 |
4.3mm |
9.5 |
25.5 |
8.3 |
|||
|
RV 5.5-5 |
#10 |
5.3mm |
9.5 |
25.5 |
8.3 |
|||
|
RV 5.5-6 |
1/4 |
6.5mm |
12.0 |
30.0 |
11.0 |
|||
|

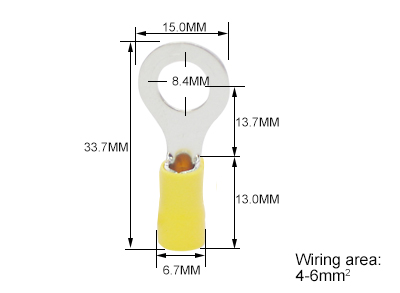

RV 5.5-8 |
5/16 |
8.4mm |
15.0 |
33.7 |
13.7 |
|||
|
RV 5.5-10 |
3/8 |
10.5mm |
15.0 |
33.7 |
13.7 |
|||
|
RV 5.5-12 |
1/2 |
13.0mm |
19.2 |
38.1 |
16.0 |
|||
