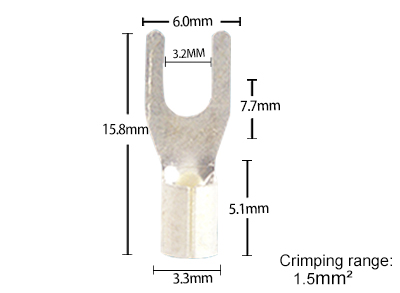

導電截面：0.5~1.5mm m2最大電流=19A銅0.7mm
|
編號 |
尺寸
|
|||||||
|
美國螺栓 |
螺栓孔直徑 |
B |
L |
F |
E |
DΦ |
dΦ |
|
|
d2 |
mm |
mm |
mm |
mm |
mm |
mm |
||
|
SNB1.25-3 |
#4 |
3.2mm |
5.7 |
16.0 |
6.5 |
4.8 |
3.4 |
1.7 |
|
SNBS1.25-3.5 |
#6 |
3.7mm |
5.7 |
16.0 |
6.5 |
|||
|
SNBL1.25-3.5 |
#6 |
3.7mm |
6.4 |
16.0 |
6.5 |
|||
|
SNBS1.25-4 |
#8 |
3.2mm |
6.4 |
16.0 |
6.5 |
|||
|
SNBM1.25-4 |
#8 |
4.3mm |
7.2 |
16.0 |
6.5 |
|||
|
SNBL1.25-4 |
#8 |
4.3mm |
8.1 |
16.0 |
6.5 |
|||
|
SNBS1.25-5 |
#10 |
5.3mm |
8.1 |
16.0 |
6.5 |
|||
|
SNBL1.25-5 |
#10 |
5.3mm |
9.5 |
16.0 |
6.5 |
|||
|
SNBS1.25-6 |
1/4 |
6.5mm |
9.5 |
16.0 |
6.5 |
|||
|
SNBL1.25-6 |
1/4 |
6.5mm |
12.0 |
22.0 |
11.0 |
|||
|
SNB 1.25-8 |
5/16 |
8.4mm |
14.0 |
23.5 |
12.5 |
|||
導電截面：1.5~2.5mm m2最大電流=27A銅0.8mm
|
編號 |
尺寸
|
|||||||
|
美國螺栓 |
螺栓孔直徑 |
B |
L |
F |
E |
DΦ |
dΦ |
|
|
d2 |
mm |
mm |
mm |
mm |
mm |
mm |
||
|
SNB2-3 |
#4 |
3.2mm |
5.7 |
16.0 |
6.5 |
4.8 |
4.1 |
2.3 |
|
SNBS2-3.5 |
#6 |
3.7mm |
5.7 |
16.0 |
6.5 |
|||
|
SNBL2-3.5 |
#6 |
3.7mm |
6.4 |
16.0 |
6.5 |
|||
|
SNBS2-4 |
#8 |
3.2mm |
6.4 |
16.0 |
6.5 |
|||
|
SNBM2-4 |
#8 |
4.3mm |
7.2 |
16.0 |
6.5 |
|||
|
SNBL2-4 |
#8 |
4.3mm |
8.1 |
16.0 |
6.5 |
|||
|
SNBS2-5 |
#10 |
5.3mm |
8.1 |
16.0 |
6.5 |
|||
|
SNBL2-5 |
#10 |
5.3mm |
9.5 |
16.0 |
6.5 |
|||
|
SNBS2-6 |
1/4 |
6.5mm |
9.5 |
16.0 |
6.5 |
|||
|
SNBL2-6 |
1/4 |
6.5mm |
12.0 |
22.0 |
11.0 |
|||
|
SNB 2-8 |
5/16 |
8.4mm |
14.0 |
23.5 |
12.5 |
|||
導電截面：2.5~4mm 2最大電流=37A銅1.0 mm
|
編號 |
尺寸
|
|||||||
|
美國螺栓 |
螺栓孔直徑 |
B |
L |
F |
E |
DΦ |
dΦ |
|
|
d2 |
mm |
mm |
mm |
mm |
mm |
mm |
||
|
SNB3.5-3 |
#4 |
3.2mm |
5.7 |
18.3 |
7.0 |
6.0 |
5.0 |
3.0 |
|
SNB3.5-4 |
#8 |
4.3mm |
8.0 |
18.3 |
7.0 |
|||
|
SNB3.5-5 |
#10 |
5.3mm |
8.0 |
18.3 |
7.0 |
|||
|
SNB3.5-6 |
1/4 |
6.5mm |
12.0 |
21.5 |
12.1 |
|||
導電截面：4~6mm m2最大電流=48A銅1.0 mm
|
編號 |
尺寸
|
|||||||
|
美國螺栓 |
螺栓孔直徑 |
B |
L |
F |
E |
DΦ |
dΦ |
|
|
d2 |
mm |
mm |
mm |
mm |
mm |
mm |
||
|
SNB5.5-3.5 |
#6 |
3.7mm |
8.3 |
19.5 |
7.5 |
6.8 |
5.6 |
3.4 |
|
SNBS5.5-4 |
#8 |
4.3mm |
8.3 |
19.5 |
7.5 |
|||
|
SNBL5.5-4 |
#8 |
4.3mm |
9.0 |
19.5 |
7.5 |
|||
|
SNB5.5-5 |
#10 |
5.3mm |
9.0 |
19.5 |
7.5 |
|||
|
SNBS5.5-6 |
1/4 |
6.5mm |
9.0 |
19.5 |
7.5 |
|||
|
SNBL5.5-6 |
1/4 |
6.5mm |
12.0 |
25.5 |
12.0 |
|||
|
SNB5.5-8 |
5/16 |
8.4mm |
14.0 |
24.5 |
11.5 |
|||
